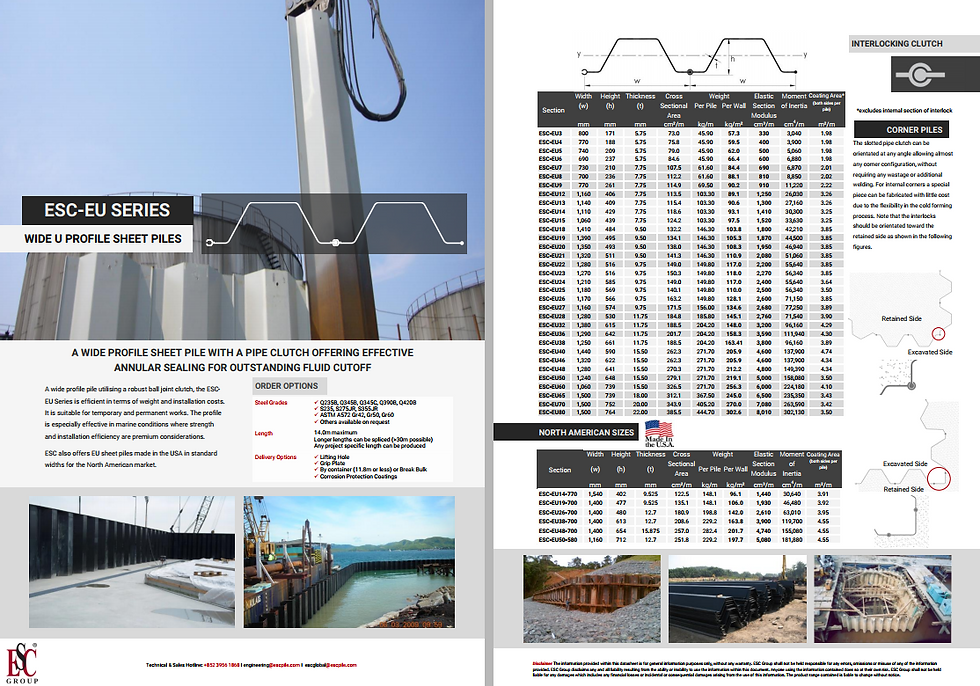

ESC-EU Series

Technical Information & Drawings

Product Photos

Product Case Studies

Contact ESC

Cold Formed Sheet Piles

A wide profile pile utilising a robust ball joint clutch, the ESC-EU Series is efficient in terms of weight and installation costs. Suitable for temporary and permanent works. The profile is especially effective in marine conditions where strength and installation efficiency as premium considerations.

The advantages of EU sheet piles include:

Clutch provides annular area for effective joint sealing using sealants.
Interlocking clutches are located at the outer fibre.This results in an optimized section profile for high strength and low material weight.
High Moment of Inertia reducing deflection meeting serviceability requirements
Wider profile width reduces handling and installation time with usual driving equipment.
Wider profile reduces the number of interlocks required for a set wall run length, improving water-tightness capabilities.

NORTH AMERICAN SIZES

Section Modulus Range

300-8000cm3/m

Width Range (single)

690-1500mm

Thickness Range

5.75-22mm

Production Standards

BS EN 10249 Part 1 & 2

Steel Grades

Q235B, Q345B, Q345C, Q390B, Q420B
S235, S275JR, S355JR, S355JO
ASTM A572 Gr42, Gr50, Gr60
Others available on request

Length

14.0m maximum
Longer lengths can be spliced (>30m possible)
Any project specific length can be produced

Delivery Options

Lifting Hole
Grip Plate
By container (11.8m or less) or Break Bulk
Corrosion Protection Coatings

Corner Piles

The slotted pipe clutch can be orientated at any angle allowing almost any corner configuration, without requiring any wastage or additional welding. For internal corners a special piece can be fabricated with little cost due to the flexibility in the cold forming process. Note that the interlocks should be orientated toward the retained side as shown in the following figures.
